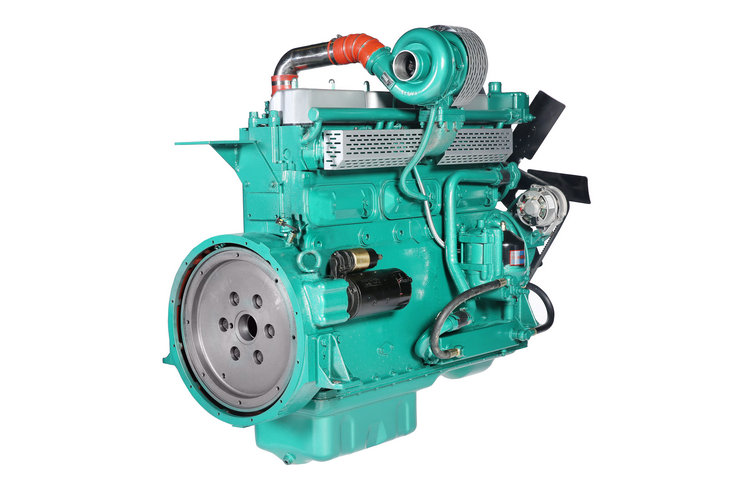

發動機型號 Engine Model |
YC12H227 |
|
柴油機型式 Type |
缸內直噴、直列、四沖程、水冷、兩氣門 Direct injection,ln-Line,four-stroke,water-cooled，wo-Valve |
|
進氣方式 Aspiration |
渦輪增壓turbocharger
|
|
氣缸數（個） Number of Cylinders |
6 |
|
接口 |
1#14 |
|
1小時功率 1h Power(KW) |
227 |
|
缸徑/行程 Bore/Stroke(mm) |
135×150 |
|
壓縮比 Compression ratio |
16 |
|
總排量 Total Displacement(L) |
12.9 |
|
標定工況燃油消耗率 BSFC@Rated Condition(g/kw.h) |
209 |
|
標定工況機油消耗率 BSFC@Oil Rated Condition(g/kw.h) |
≤0.7 |
|
怠速調速率 Idle State Rate(%) |
≤5% |
|
調速方式 Type of Governor |
機械調速 |
|
怠速轉速 Idle Speed(rpm) |
500 |
|
轉速 Rated Speed(rpm) |
1500 |
|
轉向 Direction of rotation |
面向飛輪端逆時針 |
|
起動方式 Anticilckwise facing the flywheel |
24V電壓起動 |
|
噪聲 Noise(db） |
≤110 |
|
煙度 Smoke(FSN) |
≤2.0
|
|
|
|
|
|
|
